Solar Energy Services


Storage Gas Water Heater

Sunline

  • Floor Standing
  • Wall Mounted

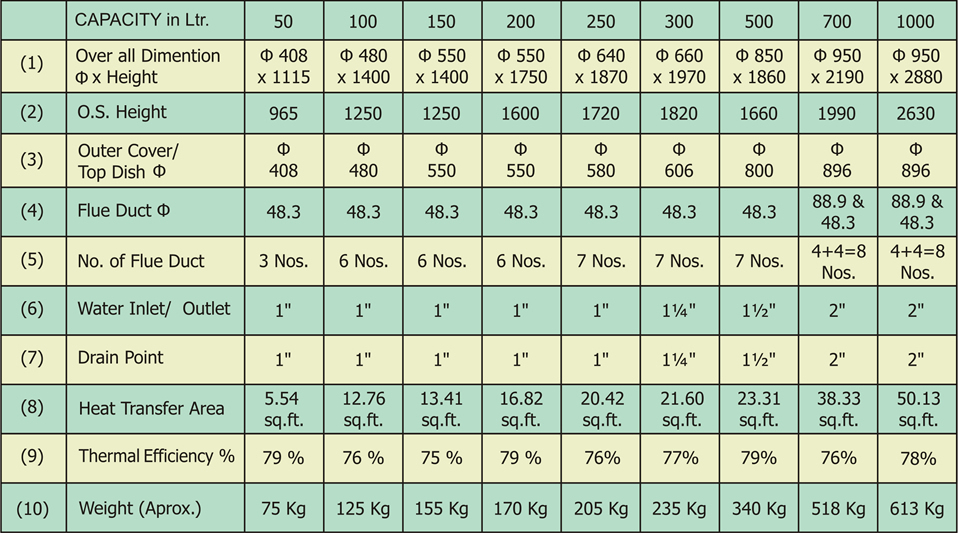

Features
  • Fully Automatic Controls.
  • You get hot water at the pre-set temperature throughout 24 hrs. a day.
  • No need to fire or extinguish the burner.
  • Convenient thermostat setting at your fingertips.
  • Non- pressurized and pressurized (inlet water) model's available.
  • Internal jacket and multi flue gas pipes baffle design for quick heating and energy saving.
  • Eco-friendly burner, low NOx design.
  • Anti-corrosive, high temperature resistant inner coating.
  • Economic and efficient operation.
  • Safety protection system.
  • Energy efficient thermal insulation-100 Kg/m' density-50mm thick rockwool LRB insulation.
  • Stainless steel cladding.
  • Sacrificial anode ( magnesium Rod (that protects the tank from corrosion.
  • Hydrostatic and pneumatic tested pressure vessels.
  • Inner construction of heavy standard steel material.
  • Temperature and pressure relief valve available, if required.
Non-Electrical Gas Burner Control (Standing Pilot)
Non- electrical gas burner control has a continuously burning pilot flame that ignites the main burner when it is needed. No need to electricity. Gas Heater with non-electric burner control is also installed in terrace (open to sky). Pilot is manually ignited one time and stays on constantly. When the thermostat calls for heat and the pilot flame is making good contact with the thermocouple , the gas Control allows gas to main burner until the call for heat is satisfied.



Electronic Burner Control Box (Without Pilot /Piezo )
Electronic Burner control box with the flame failure protection and electronic ignition (pilotless). Burner control is capable of controlling and monitoring gas burner. It is operated on 220 / 240 V Electric supply. Weekly programmable timer option also available, if required. Easy text LCD interface for daily / weekly programming . 12/24 hour clock selection using key pad. Daily 16 ON / OFF programme setting available. The programme setting will preserve the data, even in the absence of power. Heater with electronic burner control requires rain protection.



Also Suitable For High Rise Residence

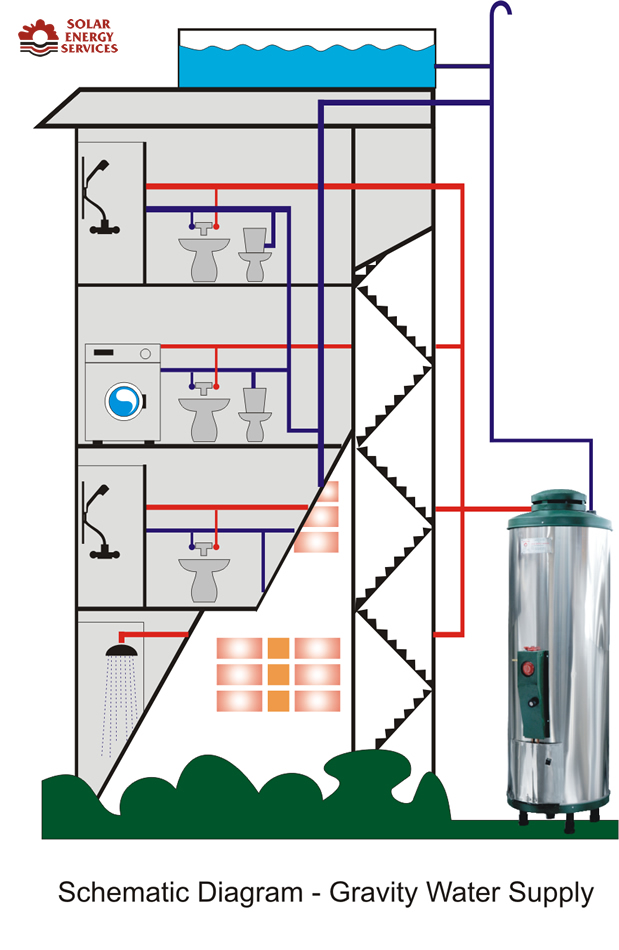

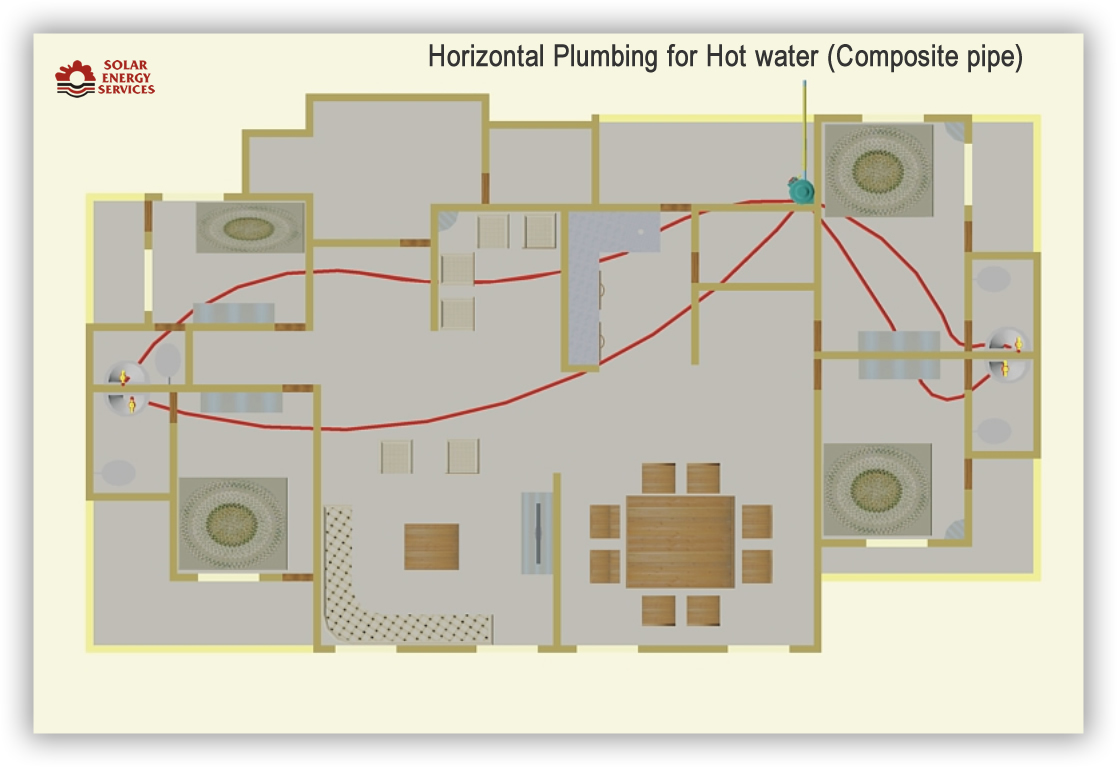

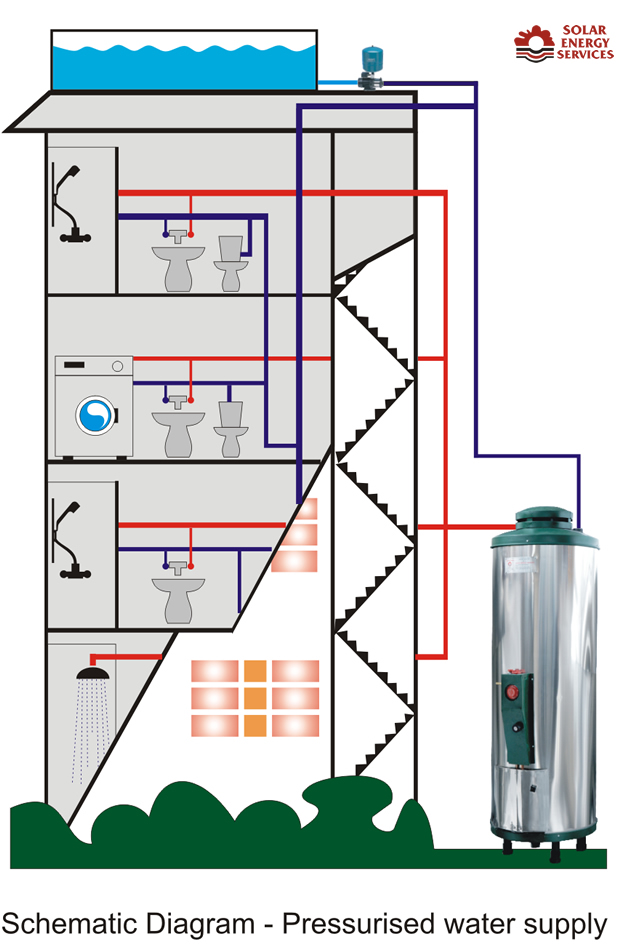

Storage Gas Water Heater is a prime necessity of the modern flats of 3 to 4 bathrooms and it's luxuries bath gadgets operation. You can now install a Storage Gas Water Heater in your Flat / Apartment like a Bungalow. It is necessary for storage gas water heater, each and every (all) bathrooms of the flats are interconnected with hot water pipeline. So care should be taken at the time of execution of plumbing work in the flats. Here is two concepts of hot water piping for your flat / plumber.

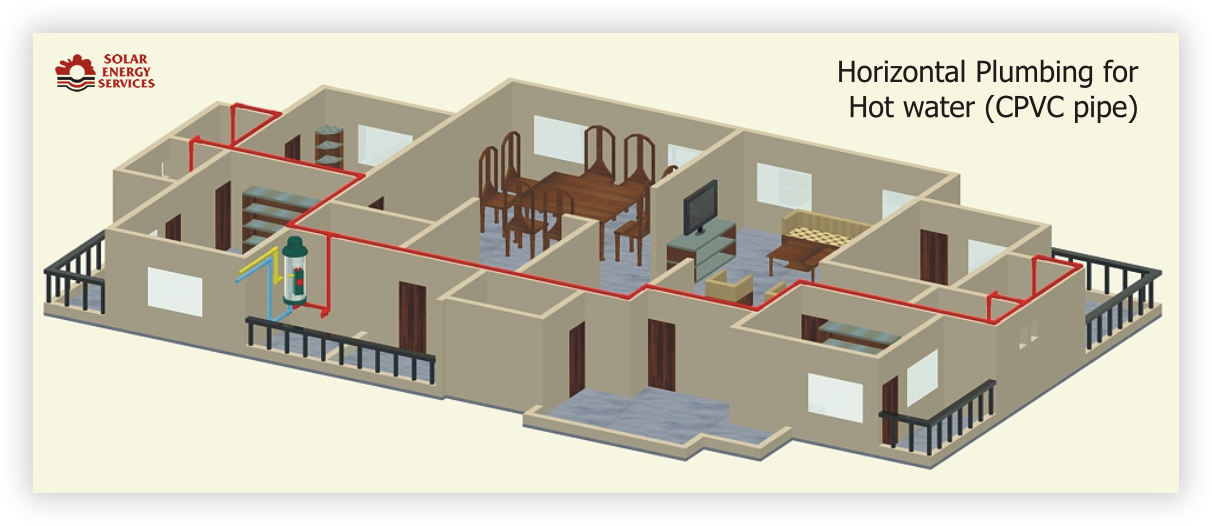

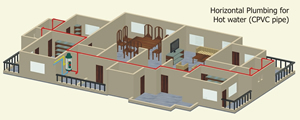

Horizontal Plumbing for Hot Water (CPVC pipe) Seashell Seashell Seashell

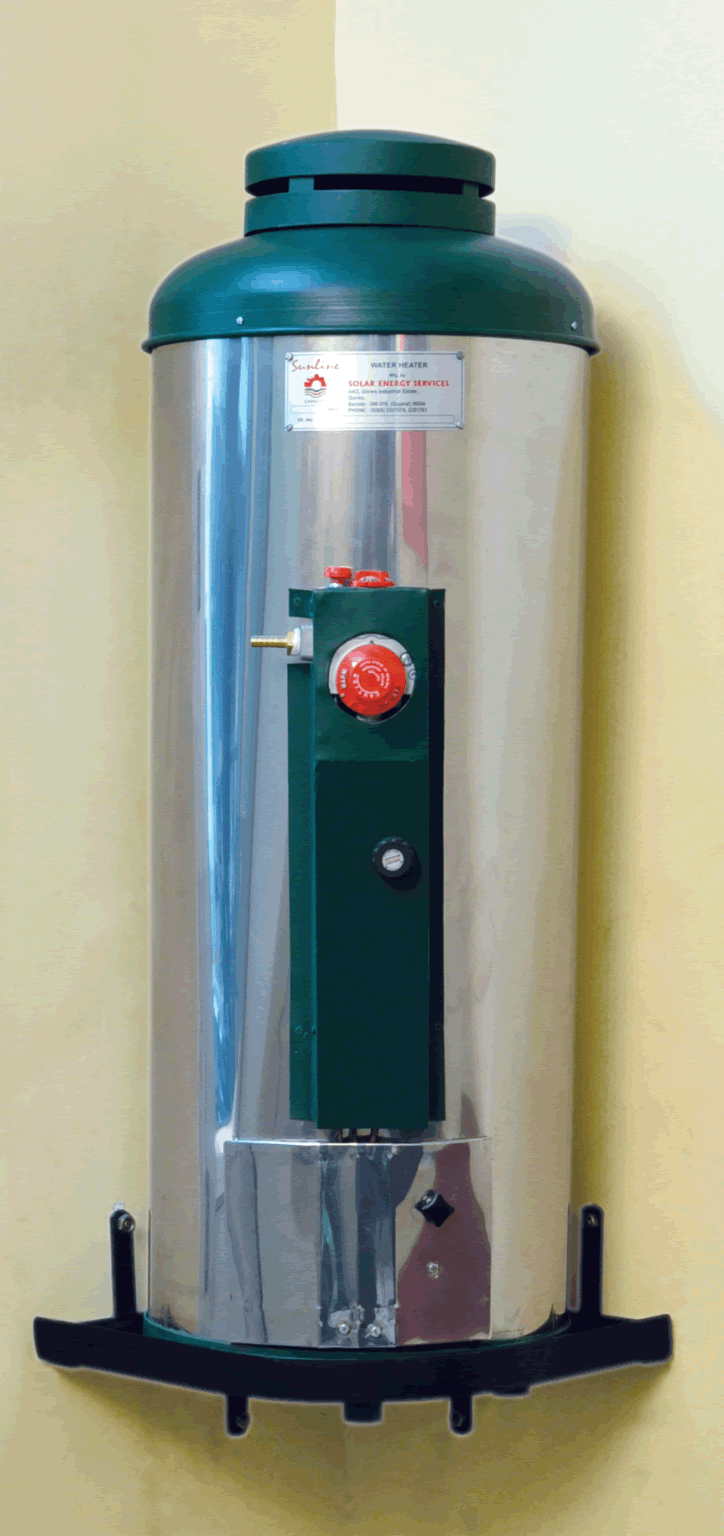

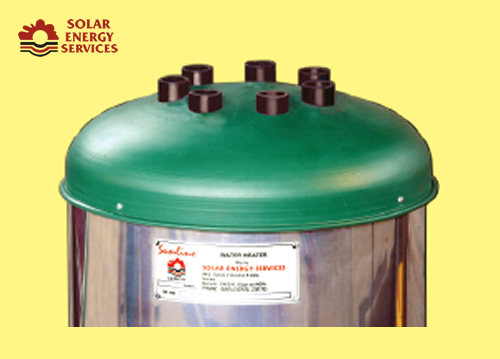

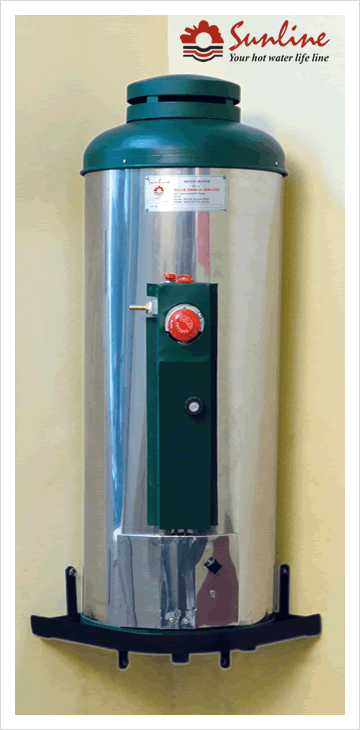

Sunline Wall Mounted Storage Gas Water Heater. Seashell
Sunline makes it easy.
You can now install a Storage Gas Water Heater in your flat. Ask for Sunline wall- mounted gas water heater.
Be money wise.
Use the Sunline natural gas (PNG) fired wall-mounted water heater and save on soaring electricity bills. Electric water heaters are more expensive to run than natural gas fired water heaters.
Enjoy a long leisurely bath.
Be assured of a steady flow of ample running hot water.
Enjoy the luxury of a shower bath.
Hot and cold water, mix the water to your comfort temperature and enjoy an uninterrupted shower bath. Sunline Wall- mounted Storage Gas Water Heater is designed to maintain an equal pressure in the hot and cold water mixer and so ensure a steady flow of water at your desired temperature.
Sunline Wall-mounted Storage Gas Water Heaters are available in 50 liter storage capacity Pressurized and Non-Pressurized Models. Large capacity models also available.
Ask for our floor mounted model when you require a larger storage capacity model.
PRODUCT FEATURES:
FULLY AUTOMATIC CONTROLS:
  • You get hot water at the pre-set temperature throughout the 24 hrs. a day
  • Three convenient thermostat setting at your fingertips (warm, hot & very hot)
  • No need to fire or extinguish the burner
  • Pilot burner ignites the main burner once water temperature falls below pre-set level and shuts C off, as soon as the desired temperature is reached
  • No need 01 any hazardous electrical controls
Capacity : 50 Litre
Seashell Height .1100mm
Outer Dia : 385 mm
Cold Water Inlet : ¾
Hot Water Outlet : ¾


Seashell Seashell

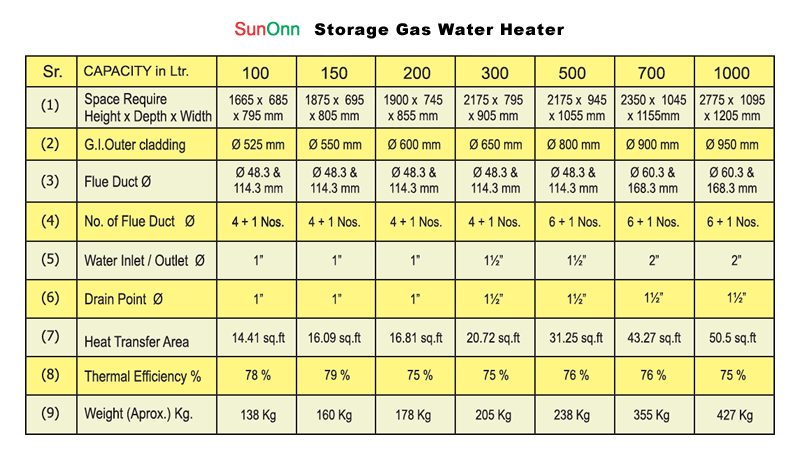

Storage Gas Water Heater

Features
  • 3 fire pass wit primary & secondary flue gas chambers- heat recyclIng design for quick  heatinga energy saving
  • Fully automatic conttrol (electronic ignition standing pilot)
  • You get hot water at pre-set temperatire throughout 24 Ins.a day.
  • No need to fire or extinguish the burner.
  • Convenient nt thermostat setting at your fingertips.
  • Hydrostraic and pneumatic tested pressure vesels.
  • Eco-friencly statriless steel bumer, low NOx design.
  • Economic and efficient operation. Anti-corroshre high temperature resistant inner coating
  • Eriergy efficlent thermal Insulation with 100 Kg. m3 density- 50 mm thick rockwool
  • imer construction of herby standard steel material.
  • Sacrificial anode (magnesium Rod) that protectsthetaolarorn corrosion.
  • Safety protection:over pressure and temperature release vive.
Non-electrical gas burner control (standing pilot)
Non-electrical gas burner control has a continuously burning pilot flame that ignites the main burner when it is need of electricity. Gas Heater with nonelectric burner control is also installed in terrace (open to sky.)
Pilot is manually ignited one time and stays on constantly. When the thermostat calls for heat and the pilot flame is making good contact with the thermocouple, the gas Control allows gas to main burner until the call for heat is satisfied.
Electrical burner control box (without pilot / piezo)
Electronic Burner control box with the flame failure protection and electronic ignition (pilotless). Burner control is capable of controlling and monitoring gas burner with timer control. It is operated on 220 / 240 V Electric supply.
Also suitable for high rise residence:
SunOnn storage Gas Water Heater us a prime necessity of the modern flats of 3 to 4 bathrooms and It's luxuries bath gadgets operation.
You can now install a Storage Gas Water Heater in you Flat / Apartment like a Bungalow.
It is necessary for storage gas water heater, each and every (all) bathrooms of the flats are interconnected with hot water pipeline. So care should be taken at the time of execution of plumbing work in the flats. Here is two concepts of hot water piping for you flat / plumber.
